Extending Tasks with Blueprint

Create custom targeting tasks by inheriting from Agentic task classes and adding your own logic in Blueprint.

When to Extend

Extend tasks when you need:

• Dynamic radius based on weapon range, character stats, or abilities
• Custom filtering logic specific to your game
• Game-specific sorting that considers your own data

Available Base Classes

Example: Dynamic Radius from Weapon

This example creates an AOE selection task that gets its radius from the character's equipped weapon at runtime.

Step 1: Create Blueprint Class

1. Content Browser → Right-click → Blueprint Class
2. In "Pick Parent Class", search for AgenticSelectionTask_AOE
3. Select it and click Select

4. Name it BP_SelectionTask_AOE_WeaponRange

Step 2: Enable Dynamic Radius (AOE Example)

1. Open your new Blueprint
2. In Class Defaults, find the Agentic | Dynamic section
3. Enable Use Dynamic Radius (check the box)

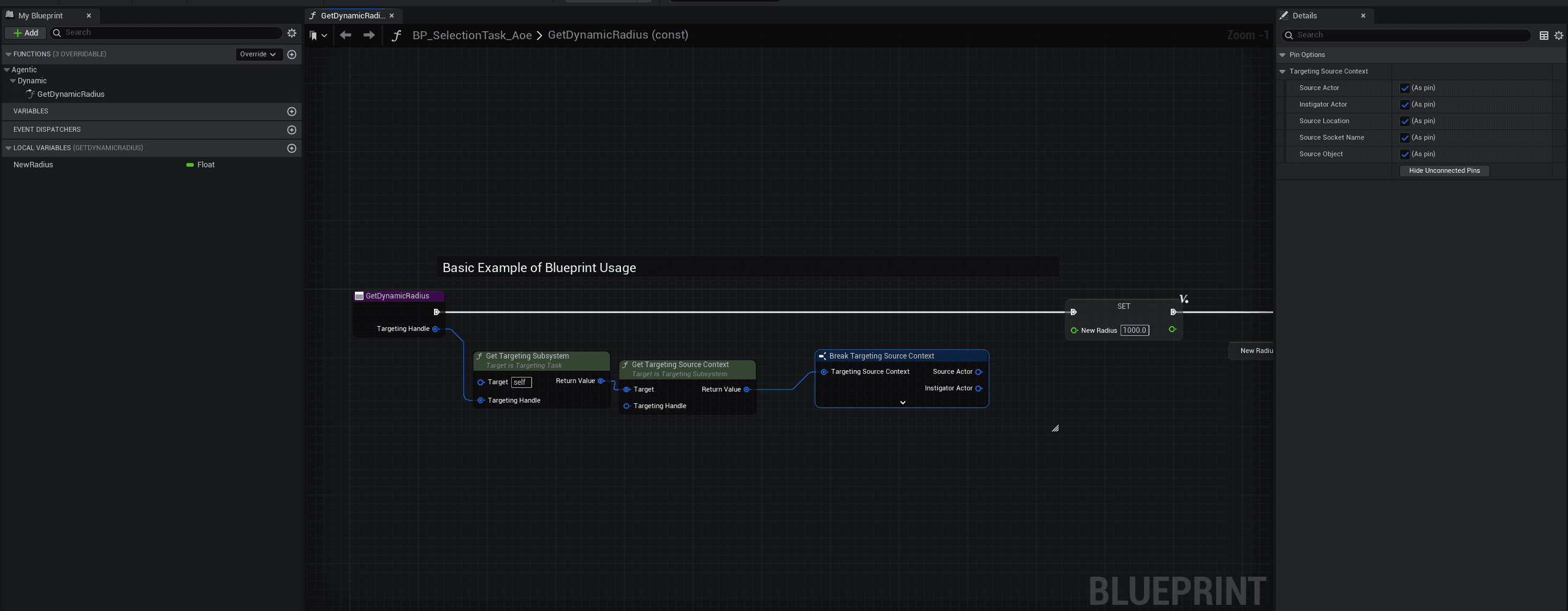

Step 3: Override GetDynamicRadius (AOE Example)

1. In the Functions panel, find Overridable Functions
2. Click Override → Get Dynamic Radius
3. Implement the function to return your weapon's range:

Blueprint Logic:

1. Get Targeting Subsystem (from self)
2. Get Targeting Source Context (pass Targeting Handle)
3. Break the struct to get Source Actor
4. Cast to your character/interface and get weapon range
5. Return the radius value (in Unreal units, e.g., 1500 = 15m)

Step 4: Register Task Tag (Optional)

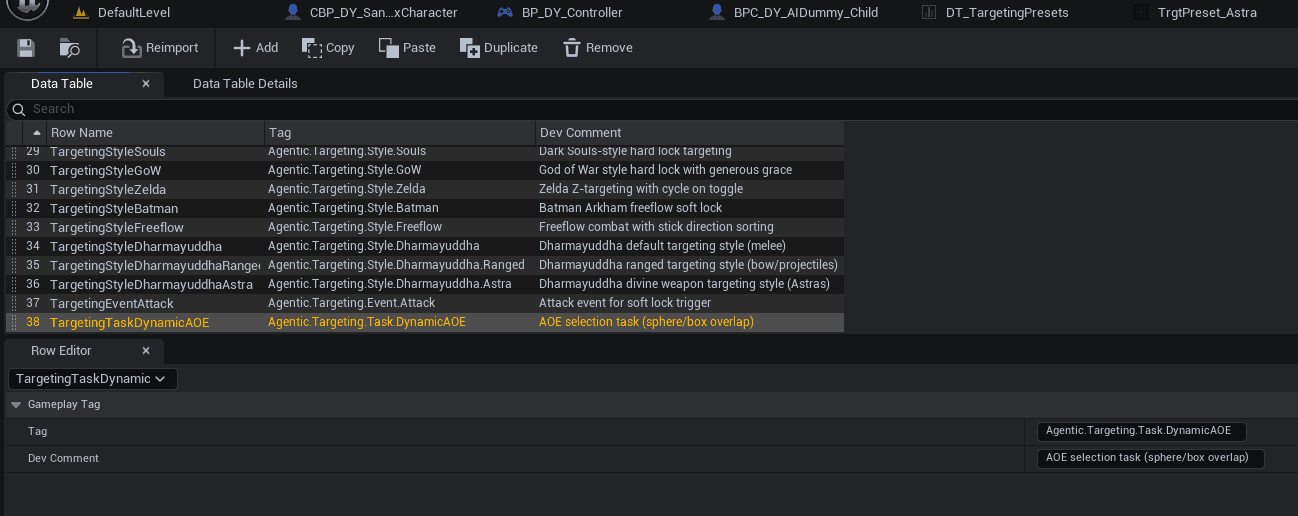

Add a tag for your task in the DT_TargetingTags DataTable:

1. Open /AgenticTargeting/Data/Targeting/DT_TargetingTags
2. Add a new row with:
   • Row Name: TargetingTaskDynamicAOE (or your preferred name)
   • Tag: Agentic.Targeting.Task.DynamicAOE
   • Dev Comment: Description of what your task does

3. Export CSV (optional but recommended): Right-click DataTable → Export as CSV → overwrite DT_TargetingTags.csv. This keeps the CSV in sync for AI tools or external editors.

Step 5: Register Task Class (Optional)

Map your tag to the Blueprint class in DT_TargetingTasks DataTable:

1. Open /AgenticTargeting/Data/Targeting/DT_TargetingTasks
2. Add a new row with:
   • Row Name: DynamicAOE
   • Task Tag: Agentic.Targeting.Task.DynamicAOE
   • Task Class: Select your BP_SelectionTask_AOE_WeaponRange
   • Description: What the task does

3. Export JSON (optional but recommended): Right-click DataTable → Export as JSON → overwrite DT_TargetingTasks.json. This keeps the JSON in sync for AI tools or external editors.

Step 6: Use Your Custom Task

Reference your Blueprint task in a preset:

1. Create or edit a Targeting Preset Data Asset

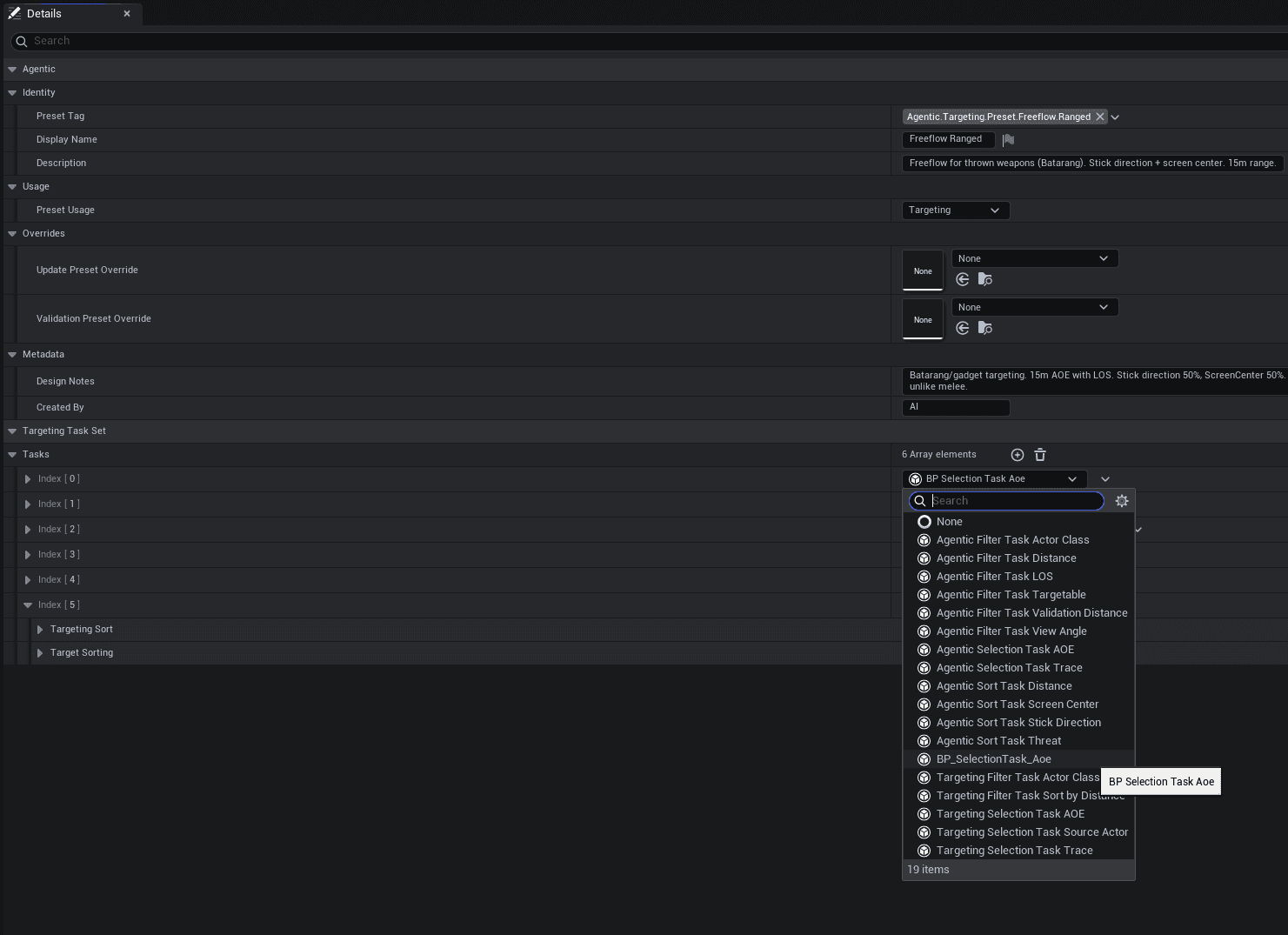

2. In the Tasks array, select your custom task from the dropdown

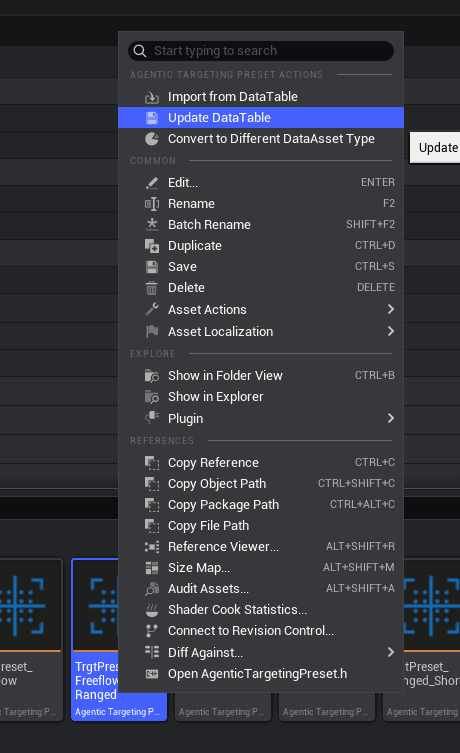

3. Update DataTable (optional but recommended): Right-click your preset → Update DataTable. This syncs all changes back to DT_TargetingPresets, including the new task references and all task parameters. Essential for AI workflows and external tools.

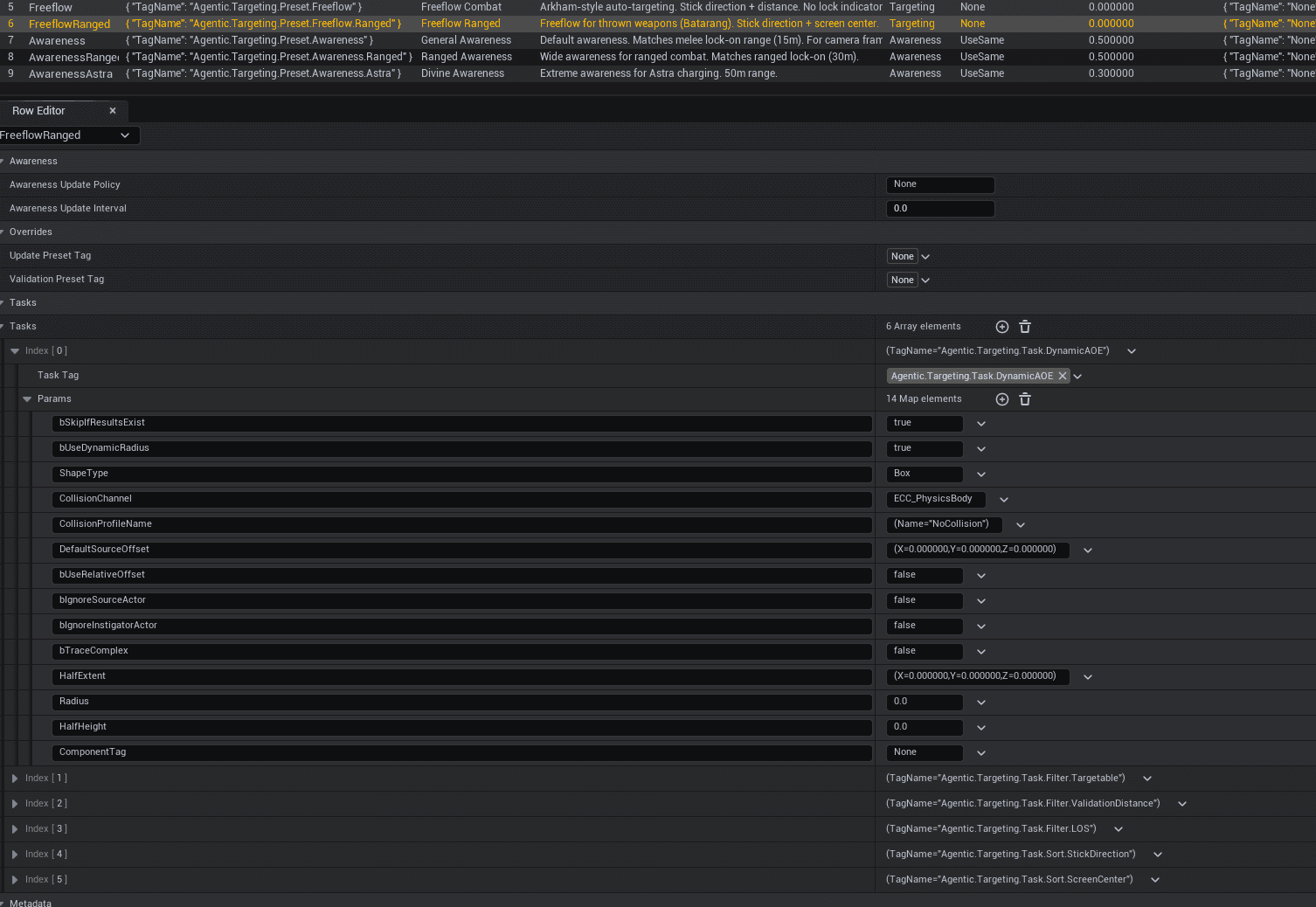

The DataTable now contains all task params including bUseDynamicRadius: true:

4. The radius will now be determined at runtime from your weapon

Getting Source Actor from Handle

In any overridden function that receives FTargetingRequestHandle, you can get the source actor:

Targeting Handle → Get Targeting Subsystem → Get Targeting Source Context → Break → Source Actor

The FTargetingSourceContext contains:

• Source Actor - The character/pawn doing the targeting
• Source Location - World position
• Instigator Actor - Who triggered the request (often same as Source)

Tips

• Return <= 0 from GetDynamicRadius to fall back to the configured Radius property
• The bSkipIfResultsExist flag (default true) skips selection if results already exist - useful for re-sorting
• You can also override GetSourceLocation and GetSourceOffset in selection tasks

Included Example

The plugin includes a ready-to-use example:

Location: /AgenticTargeting/Data/Targeting/BP_SelectionTask_AOE_DynamicRadius

This Blueprint demonstrates the pattern of getting radius from the source actor's extent.
