Character SFX

Event-driven body audio — breathing loops that ramp with exertion, effort grunts on jump and land, sprint-recovery wheezes, low-health heartbeat. Zero-tick design where it counts: subscribed to footstep events, attribute change delegates, or AnimInstance polling — your choice per trigger.

Authoring custom Blueprint Events or Triggers? After this overview, jump to BP Authoring — Events & Triggers for the heartbeat case study and the seven gotchas that ship with the territory.

The Three-Layer Architecture

CharacterSFX intentionally separates what plays, when it plays, and how it plays into three classes:

┌──────────────────────────────────────────────────────────────┐
│ UAgenticCharacterSFXConfig  (DA_CharacterSFX_*)              │
│                                                              │
│   EventConfigs[]                ← WHAT plays per tag         │
│     ├─ CharacterSFX.Breathing.Walk → Loop (Breathing)        │
│     ├─ CharacterSFX.Breathing.Run  → Loop (Breathing)        │
│     ├─ CharacterSFX.Effort.Jump    → OneShot (Grunt)         │
│     └─ ...                                                   │
│                                                              │
│   EventTriggers[]               ← WHEN to raise each tag     │
│     ├─ Foley Event (Breathing)  → footstep state machine     │
│     ├─ Locomotion State         → AnimInstance tag poll      │
│     └─ Attribute Threshold      → GAS attribute delegate     │
└──────────────────────────────────────────────────────────────┘
                        ↓ executes via
┌──────────────────────────────────────────────────────────────┐
│ UAgenticFoleyComponent::TriggerCharacterSFX(Tag, Context)    │
│                                                              │
│   1. Look up EventConfigs for Tag                            │
│   2. For each event → Event->ExecuteEvent(Component,Tag,Ctx) │
│   3. Events manage AudioComponent pool + loop state          │
└──────────────────────────────────────────────────────────────┘

The polymorphism (Abstract, Blueprintable, EditInlineNew, Instanced on both base classes) is what makes the system extensible. Authors write new Event types and Trigger types in C++ or Blueprint without touching the config DataAsset or the foley component itself. The DataAsset holds arrays of base-class instances; UE's Instanced reflection serializes them by their runtime subclass; the Details panel's class-picker dropdown lets you pick a subclass when adding an array entry.

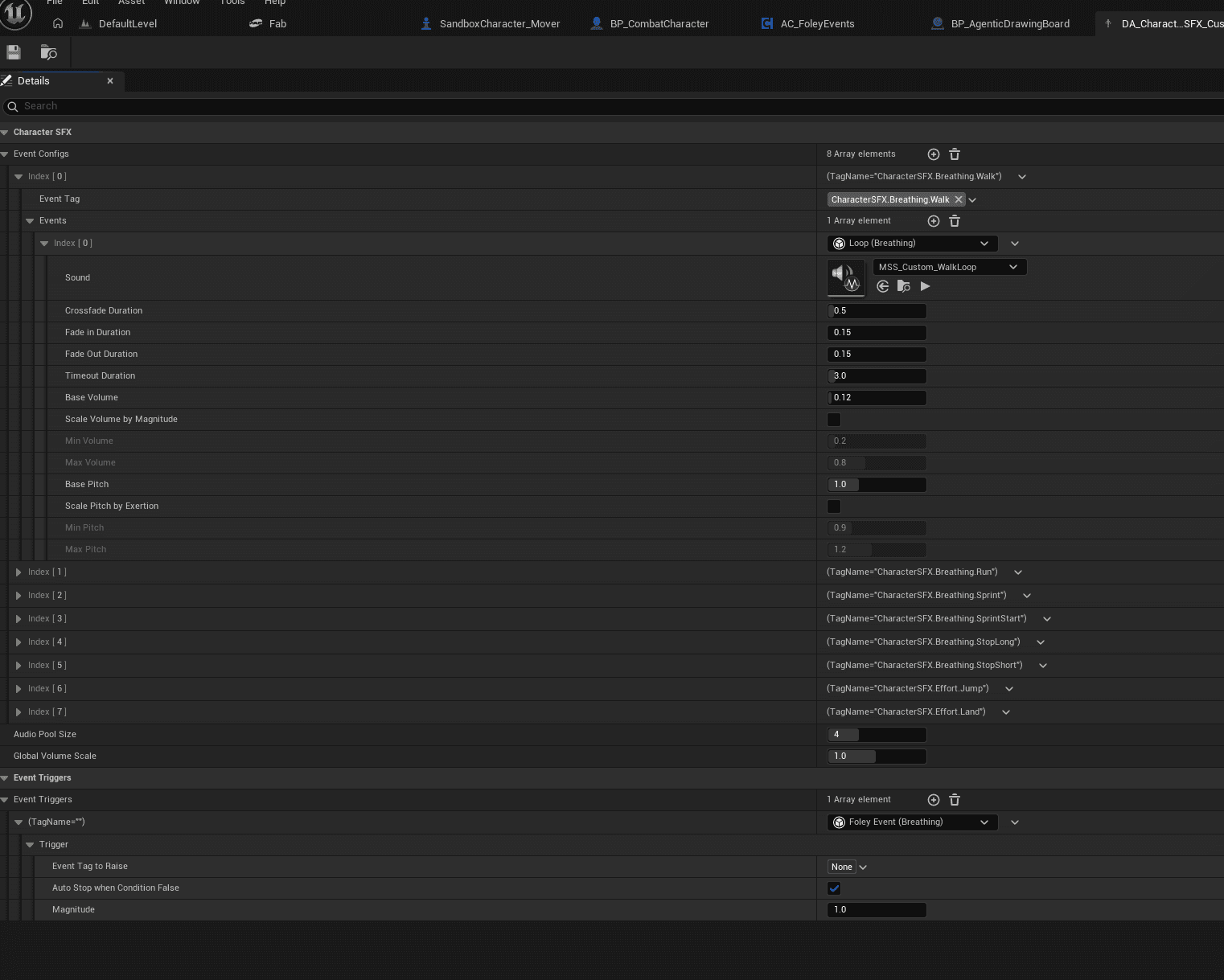

A Configured DataAsset

A DA_CharacterSFX_* with event configs and triggers populated:

Top-level fields on the DataAsset:

Shipped Event Types — What Plays

Two concrete UAgenticCharacterSFXEvent subclasses ship with the plugin.

Loop (Breathing)

Looping sounds with crossfade, fade-in, fade-out, and timeout-driven auto-stop. Use for:

• Breathing loops that ramp with locomotion (walk → run → sprint)
• Sustained body audio (heavy armor clank loop while sprinting)
• Status SFX (on-fire hiss, bleeding gurgle, low-health heartbeat)

One-Shot (Grunt/Effort)

Discrete sounds with random pool selection, cooldown, and pitch variation. Use for:

• Effort grunts (jump pushoff, heavy landing)
• Pain cries on damage
• Battle cries
• Any one-shot character vocalization

Shipped Trigger Types — When to Raise Tags

Three concrete UAgenticCharacterSFXTrigger subclasses ship. Each one subscribes to a different condition source — pick the right one per use case.

1. Foley Event (Breathing)

UAgenticCharacterSFXTrigger_FoleyEvent. Subscribes to the foley component's OnFoleyEventResolved delegate — fires on every footstep. Classifies steps into Walk / Run / Sprint by the Foley.Event.* tag, accumulates an ExertionScore, and raises the matching breathing tag automatically. On stop it picks StopShort (low exertion) or StopLong (high exertion wheeze). On Jump/Land it fires the matching Effort tag.

Use it when you want breathing that follows footstep gait. No AnimBP dependency, no polling — drop it into EventTriggers and the breathing state machine runs itself. This is the trigger every character should have.

2. Locomotion State

UAgenticCharacterSFXTrigger_LocomotionState. Polls a named FGameplayTag property on the pawn's UAnimInstance every frame via reflection. Configurable match-tag set, optional speed-based magnitude.

Use it when you want breathing tied to a specific AnimBP state rather than footstep classification — e.g., a dedicated "stamina drain" state that drives breathing whether or not footsteps are firing. Works with any AnimInstance that exposes a FGameplayTag property — zero compile-time dependency on AgenticLocomotion.

3. Attribute Threshold

UAgenticCharacterSFXTrigger_Attribute. Binds to GAS's OnGameplayAttributeValueChange — fires only when the attribute changes, no tick. Configurable comparison (<, <=, >, >=), absolute or percentage threshold, hysteresis to prevent flicker, optional magnitude derived from the attribute value.

Use it when SFX should react to gameplay state. Canonical use cases:

The pattern stacks — multiple Attribute triggers in one DataAsset, each raising a different tag, with EventConfigs playing the right Loop or OneShot per tag. No C++ touch.

Hysteresis is mandatory. Attribute values bounce near boundaries — without Hysteresis > 0 you get rapid on/off spam.

Requires GAS on the pawn. The trigger walks the owner for an UAbilitySystemComponent at Initialize. If none is found, it logs a warning and sits dormant.

Configuration

Open DA_CharacterSFX_Default (or duplicate it for a per-character variant) and:

1. Swap sounds — open each EventConfigs entry, drill into Events[0], replace the Sound / Sounds field.
2. Tune volumes + timeouts — BaseVolume = 0.1–0.3 so breathing sits below the surface layer. TimeoutDuration = 3.0 for responsive fade-out.
3. Configure triggers — Foley Event (Breathing) for footstep-driven breathing, Attribute Threshold for health/stamina-driven SFX, Locomotion State for AnimBP-driven breathing.
4. Assign to character — on the foley component, set CharacterSFXConfig.

PIE test: walk, run, sprint, jump, stop. Take damage past your heartbeat threshold. Listen.

Verbose logging:

Log LogAgenticFoley Verbose

Each trigger fire and stop logs a line — the pipeline tells you exactly which tag fired, which event matched, and the resolved volume / pitch.

Sound Assets

Two complete sound sets ship with the plugin:

Switch by setting CharacterSFXConfig on the foley component. Both ship with a Foley Event (Breathing) trigger preconfigured; Default adds an Attribute Threshold trigger gating heartbeat at Health < 100.

MetaSound presets shipped

Next Steps

• BP Authoring — Events & Triggers — write your own Loop / OneShot / Trigger subclasses in Blueprint. Heartbeat case study with full lifecycle (idempotent spawn, fade-out, destroy, no stacking) plus the seven gotchas that bit us shipping it.
• Multiplayer — CharacterSFX replicates through the same GAS GameplayCue pipeline as surface foley. No extra wiring.
• Data Assets reference — full field list for UAgenticFoleyDataAsset and the broader DataAsset family.
